Flash Unit Model Tutorial#
Author: Jaffer Ghouse
Maintainer: Tanner Polley
Updated: 2025-06-03
In this module, we will familiarize ourselves with the IDAES framework by creating and working with a flowsheet that contains a single flash tank. The flash tank will be used to perform separation of Benzene and Toluene.
The general workflow of setting up an IDAES flowsheet is the following:
1 Importing Modules
2 Building a Model
3 Scaling the Model
4 Specifying the Model
5 Initializing the Model
6 Solving the Model
7 Analyzing and Visualizing the Results
We will complete each of these steps as well as demonstrate analyses on this model through some examples and exercises.
Key links to documentation#
Main IDAES online documentation page: https://idaes-pse.readthedocs.io/en/stable/
General Workflow: https://idaes-pse.readthedocs.io/en/stable/how_to_guides/workflow/general.html
Flash Unit Model Documentation: https://idaes-pse.readthedocs.io/en/stable/reference_guides/model_libraries/generic/unit_models/flash.html
1 Import Modules#
In the next cell, we will perform the necessary imports to get us started. From pyomo.environ (a standard import for the Pyomo package), we are importing ConcreteModel (to create the Pyomo model that will contain the IDAES flowsheet) and SolverFactory (to create the object we will use to solve the equations). We will also import Constraint as we will be adding a constraint to the model later in the module. Lastly, we also import value from Pyomo. This is a function that can be used to return the current numerical value for variables and parameters in the model. These are all part of Pyomo.
We will also import the main FlowsheetBlock from IDAES. The flowsheet block will contain our unit model. %matplotinline allows plots to be displayed within the jupyter cell block output rather than in a separate window.
from pyomo.environ import ConcreteModel, SolverFactory, Constraint, value
from idaes.core import FlowsheetBlock
# Import idaes logger to set output levels
import idaes.logger as idaeslog
%matplotlib inline
2 Create the Model and IDAES Flowsheet#
In the next cell, we will create the ConcreteModel object often named m (which comes from Pyomo) and then connect the FlowsheetBlock (which comes from IDAES) to m. We ensure dynamic=False since this is a steady-state problem. This creates our overall model and adds the flowsheet capabilities that IDAES provides to the Pyomo model.
m = ConcreteModel()
m.fs = FlowsheetBlock(dynamic=False)
# Todo: call pprint on the model
m.pprint()
1 Block Declarations
fs : Size=1, Index=None, Active=True
1 Set Declarations
_time : Size=1, Index=None, Ordered=Insertion
Key : Dimen : Domain : Size : Members
None : 1 : Any : 1 : {0.0,}
1 Declarations: _time
1 Declarations: fs
2.1 Define Properties#
We need to define the property package for our flowsheet. In this example, we will be using the ideal property package that is available as part of the IDAES framework. This property package supports ideal gas - ideal liquid, ideal gas - NRTL, and ideal gas - Wilson models for VLE. More details on this property package can be found at: https://idaes-pse.readthedocs.io/en/stable/reference_guides/model_libraries/generic/property_models/activity_coefficient.html
IDAES also supports creation of your own property packages that will be shown in a later module. More details can be found here https://idaes-examples.readthedocs.io/en/latest/docs/properties/custom/index.html
For this workshop, we will import the BTX_activity_coeff_VLE property parameter block to be used in the flowsheet. This properties block will be passed to our unit model to define the appropriate state variables and equations for performing thermodynamic calculations.
from idaes.models.properties.activity_coeff_models.BTX_activity_coeff_VLE import (
BTXParameterBlock,
)
m.fs.properties = BTXParameterBlock(
valid_phase=("Liq", "Vap"), activity_coeff_model="Ideal", state_vars="FTPz"
)
2.2 Adding Flash Unit#
Now that we have the flowsheet and the properties defined, we can create the flash unit and add it to the flowsheet.
The Unit Model Library within IDAES includes a large set of common unit operations (see the online documentation for details: https://idaes-pse.readthedocs.io/en/stable/reference_guides/model_libraries/generic/unit_models/index.html
IDAES also fully supports the development of customized unit models (which we will see in a later module). More details can be found here https://idaes-examples.readthedocs.io/en/latest/docs/unit_models/custom_unit_models/index.html.
Some of the IDAES pre-written unit models:
Mixer / Splitter
Heater / Cooler
Heat Exchangers (simple and 1D discretized)
Flash
Reactors (kinetic, equilibrium, gibbs, stoichiometric conversion)
Pressure changing equipment (compressors, expanders, pumps)
Feed and Product (source / sink) components
In this module, we will import the Flash unit model from idaes.models.unit_models and create an instance of the flash unit, attaching it to the flowsheet. Each IDAES unit model has several configurable options to customize the model behavior, but also includes defaults for these options. In this example, we will specify that the property package to be used with the Flash unit model is the one we created earlier by setting property_package=m.fs.properties within the Flash method.
from idaes.models.unit_models import Flash
m.fs.flash = Flash(property_package=m.fs.properties)
At this point, we have created a flowsheet and a properties block. We have also created a flash unit and added it to the flowsheet. Under the hood, IDAES has created the required state variables and model equations. Everything is open. You can see these variables and equations by calling the Pyomo method pprint on the model, flowsheet, or flash tank objects. Note that this output is very exhaustive, and is not intended to provide any summary information about the model, but rather a complete picture of all of the variables and equations in the model.
3 Scaling the Model#
Now that the model is built, with properties set and the unit model created and added to the flowsheet, the next step is to scale the model. Ensuring that a model is well scaled is important for increasing the efficiency and reliability of solvers, and users should consider model scaling as an integral part of the modeling process. IDAES provides a number of tool for assisting users with scaling their models, and details on these can be found at https://idaes-pse.readthedocs.io/en/stable/reference_guides/scaling/scaling.html#scaling-toolbox
There are currently two primary methods in scaling the model: manual scaling of each relevant component, or utilizing the AutoScaler Class. The more careful and risk-free method of manually scaling each component is the recommended method for maximum control and assurance that the model will be well-scaled. This comes with the drawback of being more meticulous while the AutoScaler is much simpler to use since it scaled the whole model all at once, it is less precise by lacking direct control over the scaling factor for each component and relying on scaling factors to be estimated. Both methods will be shown below
3.1 Manual Scaling#
The set_scaling_factor function is imported from idaes.core.scaling.util and is called with and used on each relevant component that needs to be well scaled. The component is the first argument and its scaling factor is the second argument.
Both temperature and pressure can be found at m.fs.flash.inlet.
from idaes.core.scaling.util import set_scaling_factor
set_scaling_factor(m.fs.flash.inlet.temperature, 300)
set_scaling_factor(m.fs.flash.inlet.pressure, 1e6)
3.2 Scaling with AutoScaler#
The AutoScaler class is imported from idaes.core.scaling.autoscaling and an instance of the class is created. This instance contains the method scale_model which is used to scale the whole model at once. This can be a useful option but is generally more risky than manually scaling the model components since it has less direct control and specification.
from idaes.core.scaling.autoscaling import AutoScaler
autoscaler = AutoScaler()
autoscaler.scale_model(m)
4 Set Operating Conditions#
Now that we have created our unit model and scaled it, we can specify the necessary operating conditions. The inlet specifications for this flash tank are:
Inlet Specifications:
Mole fraction (Benzene) = 0.5
Mole fraction (Toluene) = 0.5
Pressure = 101325 Pa
Temperature = 368 K
4.1 Degrees of Freedom#
It is often very useful to first determine the degrees of freedom before we specify any conditions.
The idaes.core.util.model_statistics package has a function degrees_of_freedom. To see how to use this function, we can make use of the Python function help(func). This function prints the appropriate documentation string for the function.
# Todo: import the degrees_of_freedom function from the idaes.core.util.model_statistics package
from idaes.core.util.model_statistics import degrees_of_freedom
# Todo: Call the python help on the degrees_of_freedom function
help(degrees_of_freedom)
Help on function degrees_of_freedom in module idaes.core.util.model_statistics:
degrees_of_freedom(block)
Method to return the degrees of freedom of a model.
Args:
block : model to be studied
Returns:
Number of degrees of freedom in block.
# Todo: print the degrees of freedom for your model
print("Degrees of Freedom =", degrees_of_freedom(m))
Degrees of Freedom = 7
4.2 Specify Inlet Conditions#
To satisfy our degrees of freedom, we will first specify the inlet conditions. We can specify these values through the inlet port of the flash unit.
To see the list of naming conventions for variables within the IDAES framework, consult the online documentation at: https://idaes-pse.readthedocs.io/en/stable/explanations/conventions.html#standard-naming-format
As an example, to fix the molar flow of the inlet to be 1.0, you can use the following notation:
m.fs.flash.inlet.flow_mol.fix(1.0)
To specify variables that are indexed by components, you can use the following notation:
m.fs.flash.inlet.mole_frac_comp[0, "benzene"].fix(0.5)
In the next cell, we will specify the inlet conditions. To satisfy the remaining degrees of freedom, we will make two additional specifications on the flash tank itself. The names of the key variables within the Flash unit model can also be found in the online documentation: https://idaes-pse.readthedocs.io/en/stable/reference_guides/model_libraries/generic/unit_models/flash.html#variables.
To specify the value of a variable on the unit itself, use the following notation.
m.fs.flash.heat_duty.fix(0)
For this module, we will use the following specifications:
inlet overall molar flow = 1.0 (
flow_mol)inlet temperature = 368 K (
temperature)inlet pressure = 101325 Pa (
pressure)inlet mole fraction (benzene) = 0.5 (
mole_frac_comp[0, "benzene"])inlet mole fraction (toluene) = 0.5 (
mole_frac_comp[0, "toluene"])The heat duty on the flash set to 0 (
heat_duty)The pressure drop across the flash tank set to 0 (
deltaP)
# Todo: Add inlet specifications given above
m.fs.flash.inlet.flow_mol.fix(1)
m.fs.flash.inlet.temperature.fix(368)
m.fs.flash.inlet.pressure.fix(101325)
m.fs.flash.inlet.mole_frac_comp[0, "benzene"].fix(0.5)
m.fs.flash.inlet.mole_frac_comp[0, "toluene"].fix(0.5)
# Todo: Add 2 flash unit specifications given above
m.fs.flash.heat_duty.fix(0)
m.fs.flash.deltaP.fix(0)
Now that all the inlets have been specified, we can check the degrees of freedom again to ensure the system is square and has a degree of freedom of 0.
# Todo: print the degrees of freedom for your model
print("Degrees of Freedom =", degrees_of_freedom(m))
Degrees of Freedom = 0
5 Initializing the Model#
Now that all building steps are complete, the last step before solving the model is to initialize the model, or prepping the solve by giving it a good starting point. This is essentially giving the solver an initial guess for the iterative solver to reach convergence and is essential for both a fast and accurate solution. In IDAES, the current standard for initializing the model is by utilizing initializer instances. These initializer instances contain the initialize method that can be applied to any model type. For more information on initializing in IDAES, visit https://idaes-pse.readthedocs.io/en/stable/reference_guides/initialization/index.html.
For this tutorial, we will import the initializer class BlockTriangularizationInitializer class from the default_initializer method from the flash unit model. This is often the simplest way to obtain a compatible initializer for each unit model, but you can also directly important any initializer needed from this source idaes.core.initialization. Each initializer instance contains the initialize() method that requires an argument to be initialized and in this case its the flash unit model.
# Todo: initialize the flash unit
FlashInitializer = m.fs.flash.default_initializer()
FlashInitializer.initialize(m.fs.flash)
2025-06-06 10:51:39 [INFO] idaes.init.fs.flash.control_volume.properties_in: Initialization Step 1 optimal - <undefined>.
2025-06-06 10:51:39 [INFO] idaes.init.fs.flash.control_volume.properties_in: Initialization Step 2 optimal - <undefined>.
2025-06-06 10:51:39 [INFO] idaes.init.fs.flash.control_volume.properties_in: Initialization Step 3 optimal - <undefined>.
2025-06-06 10:51:39 [INFO] idaes.init.fs.flash.control_volume.properties_in: Initialization Step 4 optimal - <undefined>.
2025-06-06 10:51:39 [INFO] idaes.init.fs.flash.control_volume.properties_in: Initialization Step 5 optimal - <undefined>.
2025-06-06 10:51:40 [INFO] idaes.init.fs.flash.control_volume.properties_out: Initialization Step 1 optimal - <undefined>.
2025-06-06 10:51:40 [INFO] idaes.init.fs.flash.control_volume.properties_out: Initialization Step 2 optimal - <undefined>.
2025-06-06 10:51:40 [INFO] idaes.init.fs.flash.control_volume.properties_out: Initialization Step 3 optimal - <undefined>.
2025-06-06 10:51:40 [INFO] idaes.init.fs.flash.control_volume.properties_out: Initialization Step 4 optimal - <undefined>.
2025-06-06 10:51:40 [INFO] idaes.init.fs.flash.control_volume.properties_out: Initialization Step 5 optimal - <undefined>.
<InitializationStatus.Ok: 1>
Another option for initializing is utilizing the default initializer that is attached to the unit model. Each unit model as a default initializer that is hypothetically the most compatible. It can be called with m.fs.flash.initialize(). While this is an option, it is generally preferred to import an initializer object and initialize the model with that to ensure more control over the initialization.
6 Solving the Model#
Now that the model has been defined and initialized, we can solve the model.
# Todo: create the ipopt solver
solver = SolverFactory("ipopt")
# Todo: solve the model
status = solver.solve(m, tee=True)
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
Ipopt 3.13.2:
******************************************************************************
This program contains Ipopt, a library for large-scale nonlinear optimization.
Ipopt is released as open source code under the Eclipse Public License (EPL).
For more information visit http://projects.coin-or.org/Ipopt
This version of Ipopt was compiled from source code available at
https://github.com/IDAES/Ipopt as part of the Institute for the Design of
Advanced Energy Systems Process Systems Engineering Framework (IDAES PSE
Framework) Copyright (c) 2018-2019. See https://github.com/IDAES/idaes-pse.
This version of Ipopt was compiled using HSL, a collection of Fortran codes
for large-scale scientific computation. All technical papers, sales and
publicity material resulting from use of the HSL codes within IPOPT must
contain the following acknowledgement:
HSL, a collection of Fortran codes for large-scale scientific
computation. See http://www.hsl.rl.ac.uk.
******************************************************************************
This is Ipopt version 3.13.2, running with linear solver ma27.
Number of nonzeros in equality constraint Jacobian...: 135
Number of nonzeros in inequality constraint Jacobian.: 0
Number of nonzeros in Lagrangian Hessian.............: 72
Total number of variables............................: 41
variables with only lower bounds: 3
variables with lower and upper bounds: 10
variables with only upper bounds: 0
Total number of equality constraints.................: 41
Total number of inequality constraints...............: 0
inequality constraints with only lower bounds: 0
inequality constraints with lower and upper bounds: 0
inequality constraints with only upper bounds: 0
iter objective inf_pr inf_du lg(mu) ||d|| lg(rg) alpha_du alpha_pr ls
0 0.0000000e+00 6.22e-05 1.00e+00 -1.0 0.00e+00 - 0.00e+00 0.00e+00 0
1 0.0000000e+00 1.46e-11 1.00e-02 -1.0 6.22e-05 - 9.90e-01 1.00e+00h 1
Number of Iterations....: 1
(scaled) (unscaled)
Objective...............: 0.0000000000000000e+00 0.0000000000000000e+00
Dual infeasibility......: 0.0000000000000000e+00 0.0000000000000000e+00
Constraint violation....: 2.0417014662014577e-12 1.4551915228366852e-11
Complementarity.........: 0.0000000000000000e+00 0.0000000000000000e+00
Overall NLP error.......: 2.0417014662014577e-12 1.4551915228366852e-11
Number of objective function evaluations = 2
Number of objective gradient evaluations = 2
Number of equality constraint evaluations = 2
Number of inequality constraint evaluations = 0
Number of equality constraint Jacobian evaluations = 2
Number of inequality constraint Jacobian evaluations = 0
Number of Lagrangian Hessian evaluations = 1
Total CPU secs in IPOPT (w/o function evaluations) = 0.002
Total CPU secs in NLP function evaluations = 0.000
EXIT: Optimal Solution Found.
7 Viewing the Results#
Once a model is solved, the values returned by the solver are loaded into the model object itself. We can access the value of any variable in the model with the value function. For example:
print('Vap. Outlet Temperature = ', value(m.fs.flash.vap_outlet.temperature[0]))
You can also find more information about a variable or an entire port using the display method from Pyomo:
m.fs.flash.vap_outlet.temperature.display()
m.fs.flash.vap_outlet.display()
# Print the pressure of the flash vapor outlet
print("Pressure =", value(m.fs.flash.vap_outlet.pressure[0]))
print()
print("Output from display:")
# Call display on vap_outlet and liq_outlet of the flash
m.fs.flash.vap_outlet.display()
m.fs.flash.liq_outlet.display()
Pressure = 101325.0
Output from display:
vap_outlet : Size=1
Key : Name : Value
None : flow_mol : {0.0: 0.3961181748774193}
: mole_frac_comp : {(0.0, 'benzene'): 0.633976648508129, (0.0, 'toluene'): 0.366023351491871}
: pressure : {0.0: 101325.0}
: temperature : {0.0: 368.0}
liq_outlet : Size=1
Key : Name : Value
None : flow_mol : {0.0: 0.6038818251225807}
: mole_frac_comp : {(0.0, 'benzene'): 0.41211759772293044, (0.0, 'toluene'): 0.5878824022770694}
: pressure : {0.0: 101325.0}
: temperature : {0.0: 368.0}
The output from display is quite exhaustive and not really intended to provide quick summary information. Because Pyomo is built on Python, there are opportunities to format the output any way we like. Most IDAES models have a report method which provides a summary of the results for the model.
m.fs.flash.report()
====================================================================================
Unit : fs.flash Time: 0.0
------------------------------------------------------------------------------------
Unit Performance
Variables:
Key : Value : Units : Fixed : Bounds
Heat Duty : 0.0000 : watt : True : (None, None)
Pressure Change : 0.0000 : pascal : True : (None, None)
------------------------------------------------------------------------------------
Stream Table
Units Inlet Vapor Outlet Liquid Outlet
flow_mol mole / second 1.0000 0.39612 0.60388
mole_frac_comp benzene dimensionless 0.50000 0.63398 0.41212
mole_frac_comp toluene dimensionless 0.50000 0.36602 0.58788
temperature kelvin 368.00 368.00 368.00
pressure pascal 1.0132e+05 1.0132e+05 1.0132e+05
====================================================================================
Exercise: Studying Purity as a Function of Heat Duty#
Since the entire modeling framework is built upon Python, it includes a complete programming environment for whatever analysis we may want to perform. In this next exercise, we will make use of what we learned in this and the previous module to generate a figure showing some output variables as a function of the heat duty in the flash tank.
First, let’s import the matplotlib package for plotting as we did in the previous module.
import matplotlib.pyplot as plt
Exercise specifications:
Generate a figure showing the flash tank heat duty (
m.fs.flash.heat_duty[0]) vs. the vapor flowrate (m.fs.flash.vap_outlet.flow_mol[0])Specify the heat duty from -17000 to 25000 over 50 steps
# import the solve_successful checking function from workshop tools
from idaes_examples.mod.tut.workshoptools import solve_successful
# Todo: import numpy
import numpy as np
# create the empty lists to store the results that will be plotted
Q = []
V = []
# re-initialize model
FlashInitializer.initialize(m.fs.flash)
# Todo: Write the for loop specification using numpy's linspace
for duty in np.linspace(-17000, 25000, 50):
# fix the heat duty
m.fs.flash.heat_duty.fix(duty)
# append the value of the duty to the Q list
Q.append(duty)
# print the current simulation
print("Simulating with Q = ", value(m.fs.flash.heat_duty[0]))
# Solve the model
status = solver.solve(m)
# append the value for vapor fraction if the solve was successful
if solve_successful(status):
V.append(value(m.fs.flash.vap_outlet.flow_mol[0]))
print("... solve successful.")
else:
V.append(0.0)
print("... solve failed.")

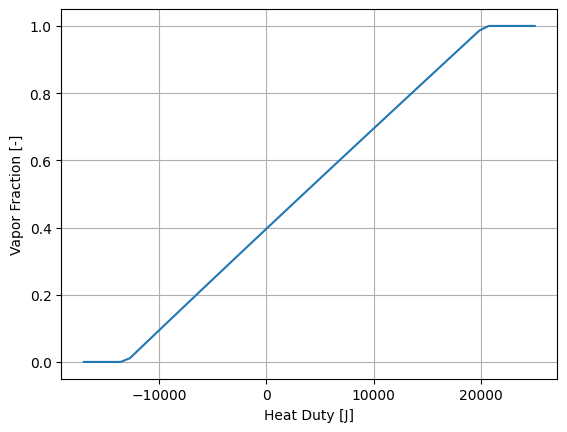

# Create and show the figure
plt.figure("Vapor Fraction")
plt.plot(Q, V)
plt.grid()
plt.xlabel("Heat Duty [J]")
plt.ylabel("Vapor Fraction [-]")
plt.show()
2025-06-06 11:04:46 [INFO] idaes.init.fs.flash.control_volume.properties_in: Initialization Step 1 optimal - <undefined>.
2025-06-06 11:04:46 [INFO] idaes.init.fs.flash.control_volume.properties_in: Initialization Step 2 optimal - <undefined>.
2025-06-06 11:04:46 [INFO] idaes.init.fs.flash.control_volume.properties_in: Initialization Step 3 optimal - <undefined>.
2025-06-06 11:04:46 [INFO] idaes.init.fs.flash.control_volume.properties_in: Initialization Step 4 optimal - <undefined>.
2025-06-06 11:04:46 [INFO] idaes.init.fs.flash.control_volume.properties_in: Initialization Step 5 optimal - <undefined>.
2025-06-06 11:04:46 [INFO] idaes.init.fs.flash.control_volume.properties_out: Initialization Step 1 optimal - <undefined>.
2025-06-06 11:04:46 [INFO] idaes.init.fs.flash.control_volume.properties_out: Initialization Step 2 optimal - <undefined>.
2025-06-06 11:04:46 [INFO] idaes.init.fs.flash.control_volume.properties_out: Initialization Step 3 optimal - <undefined>.
2025-06-06 11:04:46 [INFO] idaes.init.fs.flash.control_volume.properties_out: Initialization Step 4 optimal - <undefined>.
2025-06-06 11:04:46 [INFO] idaes.init.fs.flash.control_volume.properties_out: Initialization Step 5 optimal - <undefined>.
Simulating with Q = -17000.0
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -16142.857142857143
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -15285.714285714286
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -14428.571428571428
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -13571.428571428572
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -12714.285714285714
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -11857.142857142857
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -11000.0
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -10142.857142857143
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -9285.714285714286
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -8428.57142857143
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -7571.4285714285725
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -6714.285714285714
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -5857.142857142857
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -5000.0
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -4142.857142857143
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -3285.7142857142862
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -2428.5714285714294
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -1571.4285714285725
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -714.2857142857156
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 142.8571428571413
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 1000.0
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 1857.142857142855
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 2714.2857142857138
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 3571.4285714285725
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 4428.5714285714275
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 5285.714285714286
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 6142.857142857141
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 7000.0
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 7857.142857142855
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 8714.285714285714
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 9571.428571428569
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 10428.571428571428
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 11285.714285714286
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 12142.857142857141
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 13000.0
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 13857.142857142855
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 14714.285714285714
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 15571.428571428569
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 16428.571428571428
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 17285.714285714283
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 18142.857142857145
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 19000.0
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 19857.142857142855
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 20714.28571428571
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 21571.428571428572
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 22428.571428571428
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 23285.714285714283
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 24142.857142857145
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 25000.0
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
# Todo: generate a figure of heat duty vs. mole fraction of Benzene in the vapor
Q = []
V = []
for duty in np.linspace(-17000, 25000, 50):
# fix the heat duty
m.fs.flash.heat_duty.fix(duty)
# append the value of the duty to the Q list
Q.append(duty)
# print the current simulation
print("Simulating with Q = ", value(m.fs.flash.heat_duty[0]))
# solve the model
status = solver.solve(m)
# append the value for vapor fraction if the solve was successful
if solve_successful(status):
V.append(value(m.fs.flash.vap_outlet.mole_frac_comp[0, "benzene"]))
print("... solve successful.")
else:
V.append(0.0)
print("... solve failed.")

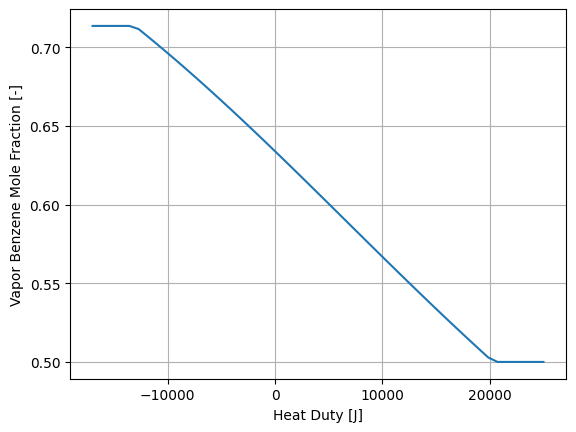

plt.figure("Purity")
plt.plot(Q, V)
plt.grid()
plt.xlabel("Heat Duty [J]")
plt.ylabel("Vapor Benzene Mole Fraction [-]")
plt.show()
Simulating with Q = -17000.0
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -16142.857142857143
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -15285.714285714286
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -14428.571428571428
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -13571.428571428572
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -12714.285714285714
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -11857.142857142857
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -11000.0
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -10142.857142857143
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -9285.714285714286
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -8428.57142857143
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -7571.4285714285725
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -6714.285714285714
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -5857.142857142857
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -5000.0
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -4142.857142857143
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -3285.7142857142862
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -2428.5714285714294
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -1571.4285714285725
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = -714.2857142857156
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 142.8571428571413
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 1000.0
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 1857.142857142855
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 2714.2857142857138
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 3571.4285714285725
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 4428.5714285714275
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 5285.714285714286
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 6142.857142857141
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 7000.0
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 7857.142857142855
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 8714.285714285714
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 9571.428571428569
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 10428.571428571428
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 11285.714285714286
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 12142.857142857141
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 13000.0
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 13857.142857142855
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 14714.285714285714
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 15571.428571428569
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 16428.571428571428
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 17285.714285714283
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 18142.857142857145
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 19000.0
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 19857.142857142855
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 20714.28571428571
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 21571.428571428572
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 22428.571428571428
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 23285.714285714283
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 24142.857142857145
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Simulating with Q = 25000.0
WARNING: model contains export suffix 'scaling_factor' that contains 7
component keys that are not exported as part of the NL file. Skipping.
... solve successful.
Recall that the IDAES framework is an equation-oriented modeling environment. This means that we can specify “design” problems natively. That is, there is no need to have our specifications on the inlet alone. We can put specifications on the outlet as long as we retain a well-posed, square system of equations.
For example, we can remove the specification on heat duty and instead specify that we want the mole fraction of Benzene in the vapor outlet to be equal to 0.6. The mole fraction is not a native variable in the property block, so we cannot use “fix”. We can, however, add a constraint to the model.
Note that we have been executing a number of solves on the problem, and may not be sure of the current state. To help convergence, therefore, we will first call initialize, then add the new constraint and solve the problem. Note that the reference for the mole fraction of Benzene in the vapor outlet is m.fs.flash.vap_outlet.mole_frac_comp[0, "benzene"].
# re-initialize the model - this may or may not be required depending on current state but safe to initialize
m.fs.flash.heat_duty.fix(0)
m.fs.flash.initialize(outlvl=idaeslog.WARNING)
# Unfix the heat_duty variable
m.fs.flash.heat_duty.unfix()
# Todo: Add a new constraint (benzene mole fraction to 0.6)
m.benz_purity_con = Constraint(
expr=m.fs.flash.vap_outlet.mole_frac_comp[0, "benzene"] == 0.6
)
# solve the problem
status = solver.solve(m, tee=True)
# Check stream condition
m.fs.flash.report()
WARNING: model contains export suffix 'scaling_factor' that contains 6
component keys that are not exported as part of the NL file. Skipping.
Ipopt 3.13.2:
******************************************************************************
This program contains Ipopt, a library for large-scale nonlinear optimization.
Ipopt is released as open source code under the Eclipse Public License (EPL).
For more information visit http://projects.coin-or.org/Ipopt
This version of Ipopt was compiled from source code available at
https://github.com/IDAES/Ipopt as part of the Institute for the Design of
Advanced Energy Systems Process Systems Engineering Framework (IDAES PSE
Framework) Copyright (c) 2018-2019. See https://github.com/IDAES/idaes-pse.
This version of Ipopt was compiled using HSL, a collection of Fortran codes
for large-scale scientific computation. All technical papers, sales and
publicity material resulting from use of the HSL codes within IPOPT must
contain the following acknowledgement:
HSL, a collection of Fortran codes for large-scale scientific
computation. See http://www.hsl.rl.ac.uk.
******************************************************************************
This is Ipopt version 3.13.2, running with linear solver ma27.
Number of nonzeros in equality constraint Jacobian...: 137
Number of nonzeros in inequality constraint Jacobian.: 0
Number of nonzeros in Lagrangian Hessian.............: 72
Total number of variables............................: 42
variables with only lower bounds: 3
variables with lower and upper bounds: 10
variables with only upper bounds: 0
Total number of equality constraints.................: 42
Total number of inequality constraints...............: 0
inequality constraints with only lower bounds: 0
inequality constraints with lower and upper bounds: 0
inequality constraints with only upper bounds: 0
iter objective inf_pr inf_du lg(mu) ||d|| lg(rg) alpha_du alpha_pr ls
0 0.0000000e+00 3.40e-02 1.00e+00 -1.0 0.00e+00 - 0.00e+00 0.00e+00 0
1 0.0000000e+00 1.64e+02 7.01e-02 -1.0 5.15e+03 - 9.87e-01 1.00e+00h 1
2 0.0000000e+00 9.59e-02 2.03e-03 -1.0 7.07e+01 - 9.90e-01 1.00e+00h 1
3 0.0000000e+00 6.96e-08 2.50e-06 -1.0 4.13e-01 - 9.98e-01 1.00e+00h 1
Number of Iterations....: 3
(scaled) (unscaled)
Objective...............: 0.0000000000000000e+00 0.0000000000000000e+00
Dual infeasibility......: 0.0000000000000000e+00 0.0000000000000000e+00
Constraint violation....: 8.9151738215745240e-11 6.9550878833979368e-08
Complementarity.........: 0.0000000000000000e+00 0.0000000000000000e+00
Overall NLP error.......: 8.9151738215745240e-11 6.9550878833979368e-08
Number of objective function evaluations = 4
Number of objective gradient evaluations = 4
Number of equality constraint evaluations = 4
Number of inequality constraint evaluations = 0
Number of equality constraint Jacobian evaluations = 4
Number of inequality constraint Jacobian evaluations = 0
Number of Lagrangian Hessian evaluations = 3
Total CPU secs in IPOPT (w/o function evaluations) = 0.001
Total CPU secs in NLP function evaluations = 0.000
EXIT: Optimal Solution Found.
====================================================================================
Unit : fs.flash Time: 0.0
------------------------------------------------------------------------------------
Unit Performance
Variables:
Key : Value : Units : Fixed : Bounds
Heat Duty : 5083.6 : watt : False : (None, None)
Pressure Change : 0.0000 : pascal : True : (None, None)
------------------------------------------------------------------------------------
Stream Table
Units Inlet Vapor Outlet Liquid Outlet
flow_mol mole / second 1.0000 0.54833 0.45167
mole_frac_comp benzene dimensionless 0.50000 0.60000 0.37860
mole_frac_comp toluene dimensionless 0.50000 0.40000 0.62140
temperature kelvin 368.00 369.07 369.07
pressure pascal 1.0132e+05 1.0132e+05 1.0132e+05
====================================================================================
